Cisco CUCM - Self Provisioning, Feature Groups, User Device Templates, User Profiles - What it all means and how to use it to get zero-touch deployment!

How to enable self-provisioning for CUCM 10.5

The problem

A customer once asked me to enable LDAP integration for their CUCM deployment.

"How long will it take?" they asked, "maybe an hour max" I replied. The customer was suprised it was so easy and I found it funny they thought it would take a while!

I enabled it for them, and the disconnect quickly became apparent: They thought enabling LDAP sync would have it so their phone info was automatically pulled from LDAP! Back then this was note the case.

CUCM 10.0 finally gives us this ability! In combination with a feature that has been available since CUCM 9 that allows you to add phones/lines in a template-like configuration. The feature can still be useful for those of you not using LDAP integration.

Building Blocks

Let's look at the parts involved so we can work out what all these new options are and what they do for us. When you create these "building blocks" you would basically create one for each separate set of discreet users, in my example I live in New Jersey, so I have created a collection of these building blocks to represent the settings of the New Jersey site users.

Universal Line Template
The universal line template is where we configure the settings for the line such as partition, call forward settings etc. You can access this via User Management -> User/Phone Add -> Universal Line Template. The settings are shown below

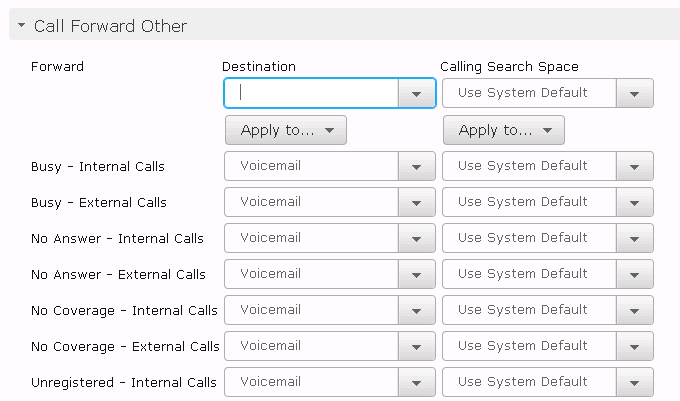

As you can see you can edit the call forward settings, calling search spaces etc. You will also notice the #FirstName# and #LastName#, these are called tags and allow you to have these fields filled in by information pulled down about the user from LDAP or entered by you manually when you create the user in the quick phone/add page (if you don't use LDAP.) I personally feel not enough "tags" exist, for example there is no DirectoryNumber Tag which would be useful, I personally like to put the directory number into the description of each device and each line.

Once you have saved this, it's onto the next building block

 Universal Device Template
Here is where you configure the device itself's CSS, MRGL, Device pool etc. These settings can be customized to what KIND of device your adding (example, you would have a separate universal device template for soft phones and remote destination profiles as an example)

These settings can be found under:
 User Management -> User/Phone Add -> Universal Device Template

User Profile

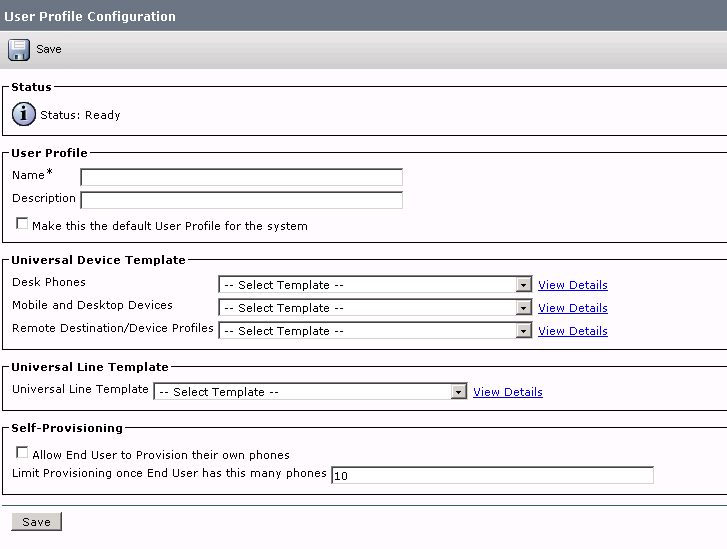

The user profile can be found under User Management -> User Settings -> User Profile. This links together the device and line template as well as controlling if the user is allowed to self provision or not. As you will see in the screenshot below, you can specify a separate user template for each type of device.
Feature Group Template
Finally, a feature group is used to set some restrictions for the user and to tie their user profile to us

Non-LDAP Users Quick Phone/User add

Let's assume for a minute that your either not using LDAP, not interested in self-provisioning OR your stuck on CUCM 9. All the settings you just configured where not in vain, you can still get great use out of the templates you just created

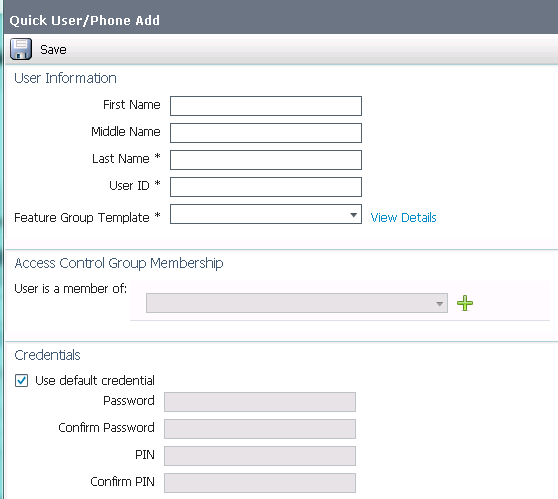

You can either create a new user with a new username and details:

Or click on either a non-LDAP integrated user or an LDAP integrated user (as per the screenshot below)

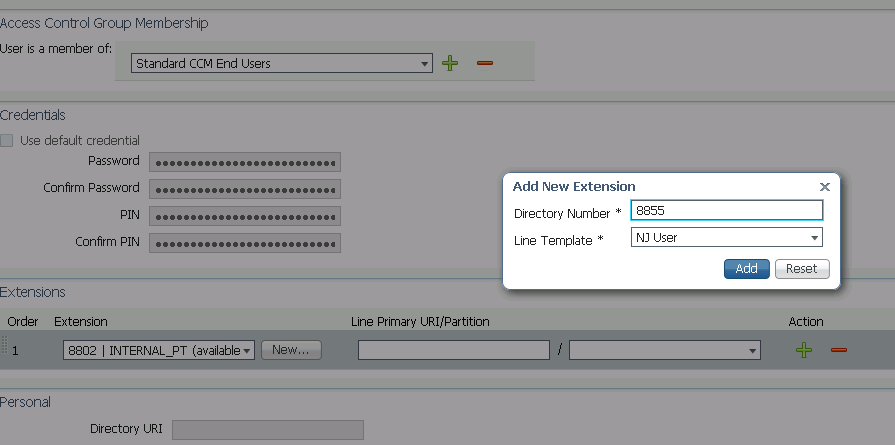

Once you have clicked on an existing user and/or created a new user, you can assign that user an extension

Once an extension is assigned you can then click "manage devices" and either move an existing phone over to them (cool! Great for changes) or add a new phone:

Part 2 of the blog will cover how to integrate this with LDAP

Sources: I got some really good information from the following blog Entry
